Enhanced Drive Electronics for

Nitrox GS3/GS6/GS12/GS40

Drive Electronics | Xaar | Nitrox GS3/GS6/GS12/GS40

Head Interface Board for Xaar Nitrox

GIS Product
Printhead Manufacturer

Xaar

Printhead Family

Nitrox GS3/GS6/GS12/GS40

Overview

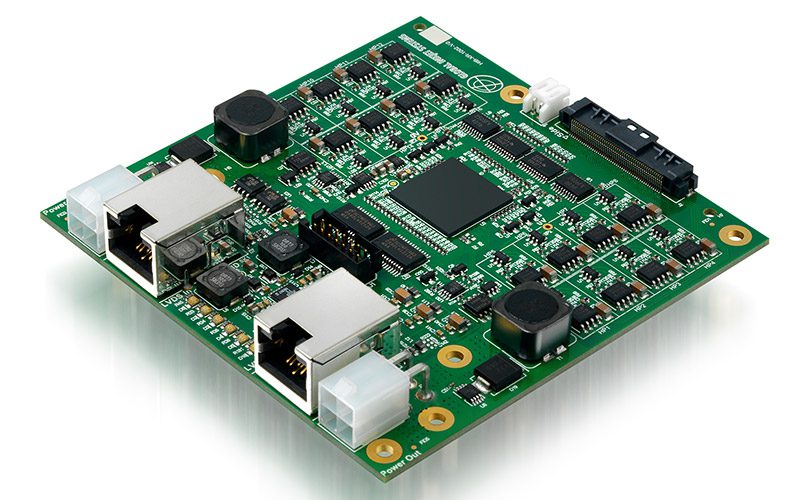

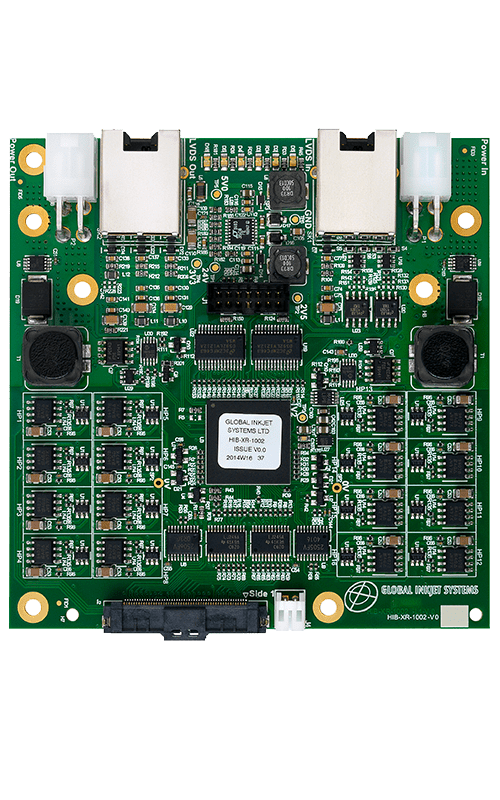

The HIB-XR-1003 Head Interface Board allows communications between the Xaar Nitrox range of printheads and the GIS Print Manager Board (PMB-C2/PMB-C8-3).

Updated software and logic drives the Nitrox printheads up to their maximum speeds.  Using the AcuChp information stored within each Nitrox printhead means that head setup is fast and simple.

Printhead Variants Supported

Nitrox Core, Pro and Elite each at GS3, GS6, GS12 or GS40

Number of Printheads

1

Print Modes
Binary
Greyscale
Number of Grey levels 16
Performance

  • Individual drive voltage control for all 16 printhead ASICs (1/16V steps)
  • Grey level / binary mode
  • Grey level drop-count control and palette remap
  • Printhead waveform selection
  • Supports Xaar’s High Laydown mode
  • Utilises Xaar AcuChp information
  • Drives up to 48kHz

Dimensions
Length 98mm
Width 100mm
Depth 15mm
Weight 90g
GIS Product
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 2
Cable length from PMB up to 10m
Cable length from HIB to Printhead* mm
