Enhanced Drive Electronics for

D3000-A1R - Ethernet

Drive Electronics | Epson | D3000-A1R - Ethernet

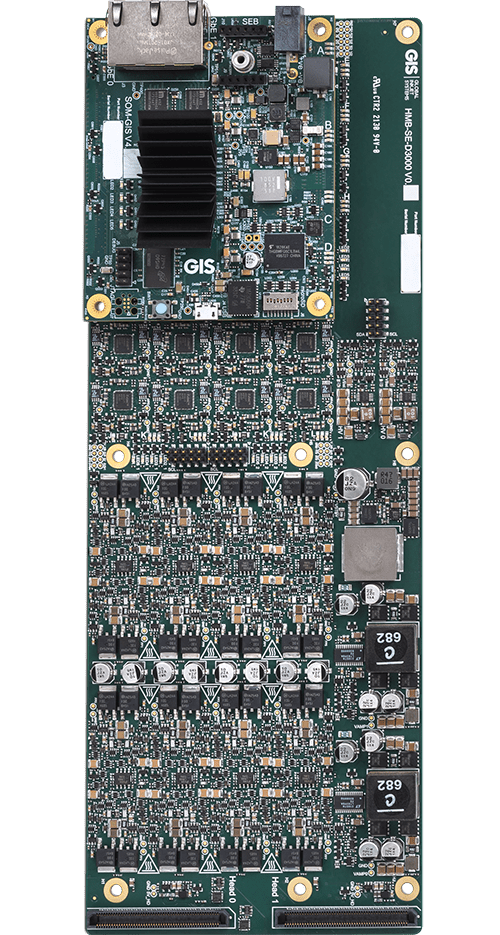

Head Manager Board HMB-SE-D3000

The Head Manager Board HMB-SE-D3000 is the latest drive electronics for the Epson PrecisionCore D3000-A1R printheads, using industry standard Ethernet connectivity.

GIS Product
Printhead Manufacturer

Epson

Printhead Family

D3000-A1R - Ethernet

Overview

Enabling full binary and greyscale capabilities, the HMB-SE-D3000 integrates datapath buffering, printhead management and high-precision fire waveform generation, all accessed via Gigabit Ethernet.

Printhead Variants Supported

D3000-A1R

Number of Printheads Driven from One HMB

2

Supported Printhead Functions
Binary and Greyscale Printing
Continuous Printhead Status Monitoring
EEPROM Access
Auto Printhead Shutdown
High Fidelity Waveform Design and Generation
HMB Integration
Length 300mm
Width 110mm
Depth 31mm
Weight 487g
PC to HMB Connection Length upto 100m
Connectivity Ethernet
Single Power Supply and Standard Connectors
Multiple Cooling Options
GIS Product
Drive Electronics Functions
Buffered and Streamed Print
Encoder and Product Detect Monitoring
Auto Electronics Shutdown
Remote Updates
Diagnostic LEDs
Continuous Electronics Status Monitoring
Reverse Power Polarity Detection and Protection
Over Voltage Protection
S/W Interface Options to HMB
GIS Atlas® Server for Scalable Print Systems
