High Performance Drive Electronics for

KM1800i

Head Interface Board HPB-KM-1800i

GIS Product
Printhead Manufacturer

Konica Minolta

Printhead

KM1800i

HIB Overview

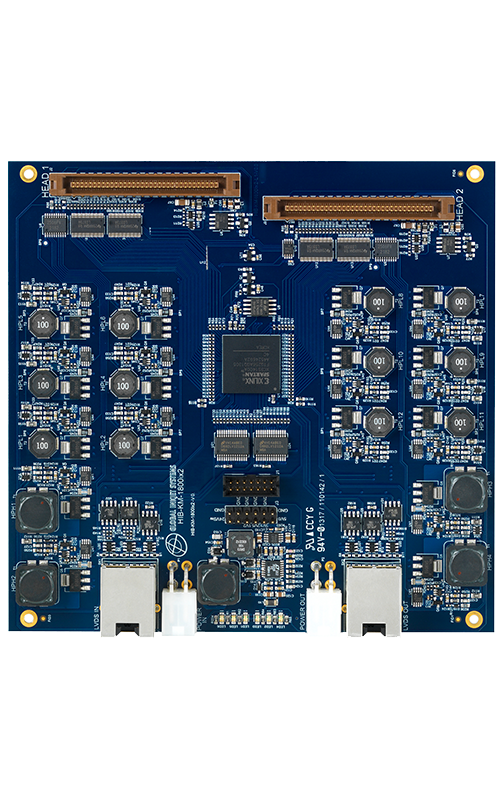

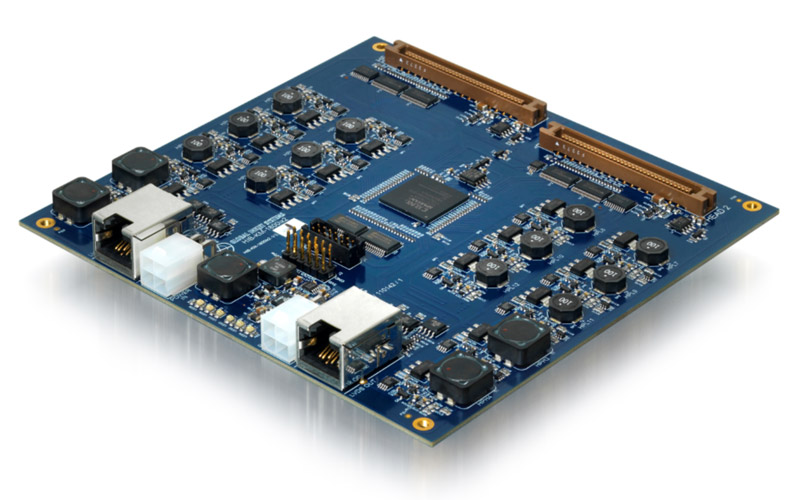

The HIB-KM-1800i from GIS is a Head Interface Board designed to provide direct communications between the Konica Minolta KM1800i printheads and the GIS Print Manager Boards (PMB-C8-3).

Printhead Variants

KM1800i

Number of printheads

2

Print Modes
Binary
Greyscale
Performance

The HIB-KM-1800i is specifically designed with a small form factor for compact system architectures. Each board can drive up to 2 x KM1800i printheads.

Dimensions
Height140mm
Width140mm
Depth150mm
Weight185g
GIS Product
Monitoring
Printhead Heater
Thermal Protection
Control
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Connectors3
Cable length from PMBup to 10m
Cable length from HIB to Head300mm
Advanced Features
  • Printhead and Heater Voltage Control
  • Left and Right Nozzle Bank Voltage Trim (0.1V steps)
  • Printhead Thermistor Control (0.1ÂșC steps)
  • Grey Level / Binary Mode Control
  • Grey Level Drop Count Control
  • Printhead Waveform Control
Download Datasheets

Head Interface Board HPB-KM-1800i for KM1800i

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
