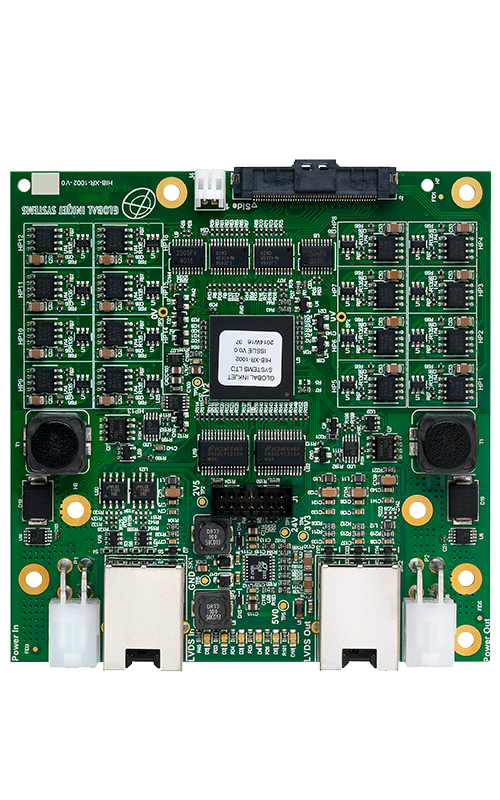

Head Interface Board HIB-XR-1002

GIS Product
Printhead Manufacturer

Xaar

Printhead Family

1003 GS6 / GS12 / GS40/AMp/Amx

Overview

The HIB-XR-1002 is a GIS Head Interface Board. It is designed to provide communications between the Xaar 1003 GS6 / GS12 / GS40/ AMp/ Amx printhead and the GIS Print Manager Board (PMB-C8/PMB-C2/PMB-C8-3).

Printhead Variants Supported

Xaar 1003 GS6, Xaar 1003 GS12, Xaar 1003 GS40, Xaar 1002 GS6, Xaar 1002 GS12, Xaar 1002 GS40, AMp, Amx

Number of Printheads

1

Print Modes
Binary
Greyscale
Number of Grey levels 16
Performance

  • Individual drive voltage control for all 16 printhead ASICs (1/16V steps)
  • Grey level / binary mode
  • Grey level drop-count control and palette remap
  • Printhead waveform selection
  • Supports Xaar’s High Laydown mode

*Direct to printhead flex connectivity

Dimensions
Length 98mm
Width 100mm
Depth 15mm
Weight 100g
GIS Product
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 2
Cable length from PMB up to 10m
Cable length from HIB to Printhead* mm
Download Datasheets

Head Interface Board HIB-XR-1002 for 1003 GS6 / GS12 / GS40/AMp/Amx

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
