Head Interface Board HIB-TT-636-M for CF1/CF1L/CF1XL

GIS Product
Printhead Manufacturer

Toshiba Tec

Printhead Family

CF1/CF1L/CF1XL

Overview

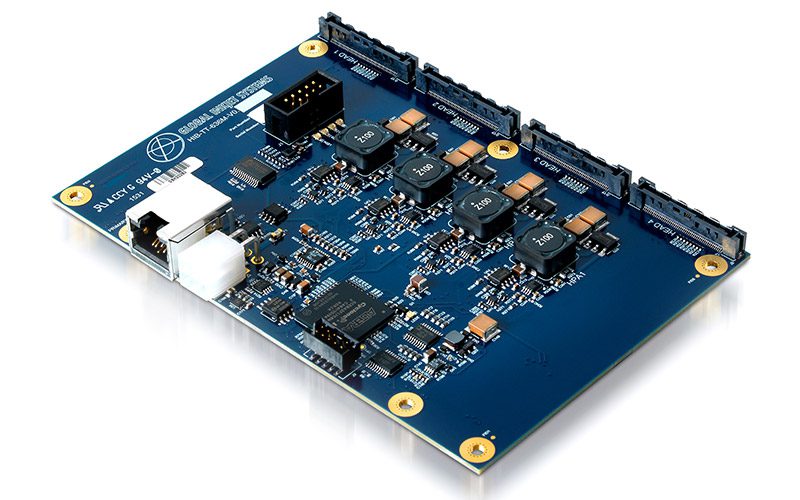

The HIB-TT-636-M from GIS is a Head Interface Board designed to provide communications between the Toshiba Tec CF1/CF1L/CF1XL printheads and the GIS Print Manager Boards (PMB-C8/ PMB-C2/ PMB-C8-3).

Printhead Variants Supported

CF1, CF1L, CF1XL, CF1B, CF1BL, CF1BXL, CF1BD3, CF1LBD3, CF1XLBD3

Number of Printheads

4

Print Modes
Binary
Greyscale
Dimensions
Length 145mm
Width 100mm
Depth 23.8mm
Weight 105g
GIS Product
Control
Printhead Heater
Thermal Protection
Monitoring
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 2
Cable length from PMB up to 10m
Cable length from HIB to Printhead* 300mm
Download Datasheets

Head Interface Board HIB-TT-636-M for CF1/CF1L/CF1XL for CF1/CF1L/CF1XL

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
