Head Interface Board HIB-RH-384

GIS Product
Printhead Manufacturer

Ricoh

Printhead Family

MH2620/2820 (Gen4L)

Overview

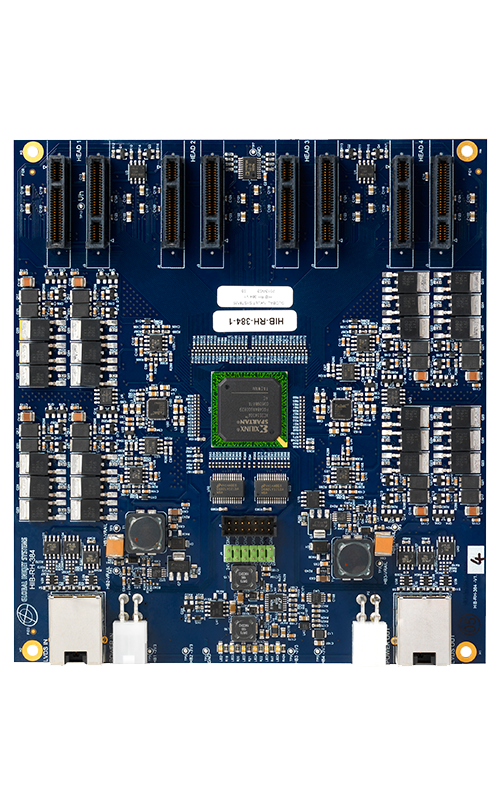

The HIB-RH-384 from GIS is a Head Interface Board designed to provide communications between the Ricoh MH2620/2820 (Gen4L) printheads and the GIS Print Manager Boards (PMB-C8/PMB-C2/PMB-C8-3).

Printhead Variants Supported

Ricoh Gen4L

Number of Printheads

4

Print Modes
Binary
Greyscale
Dimensions
Length 160mm
Width 144.5mm
Depth 23mm
Weight 195g
GIS Product
Control
Printhead Heater
Thermal Protection
Monitoring
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 2
Cable length from PMB up to 10m
Cable length from HIB to Printhead* 300mm
Advanced Features

The HIB-RH-384 can support up to 4 x MH2620/2820 (Gen 4L) printheads per board reducing system complexity and cost.

Download Datasheets

Head Interface Board HIB-RH-384 for MH2620/2820 (Gen4L)

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
