Enhanced Drive Electronics for

KJ4A-AA

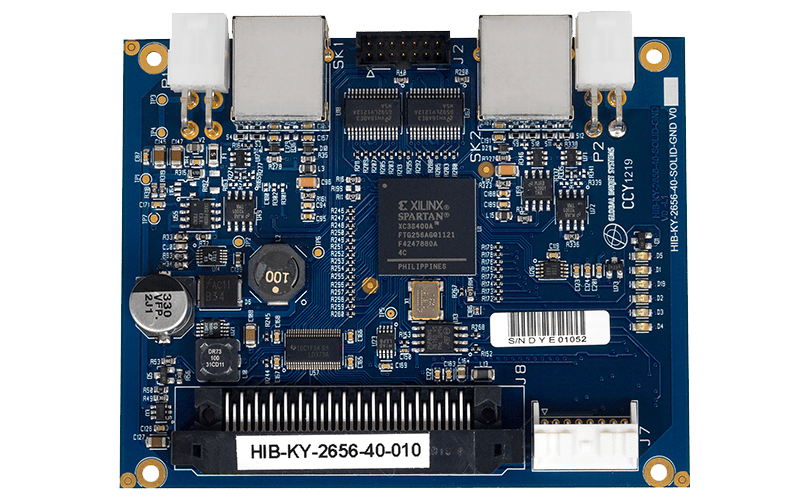

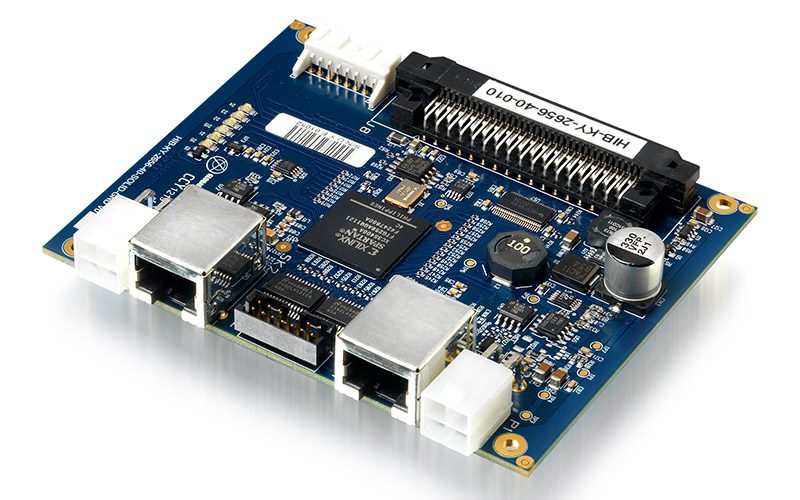

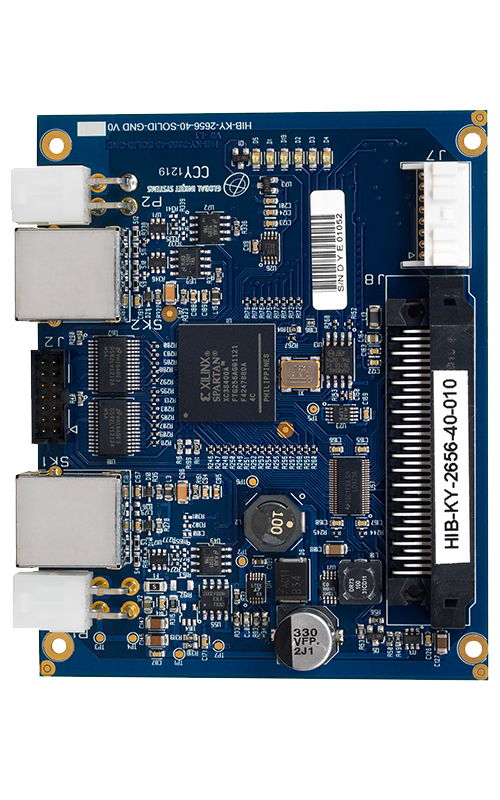

Head Interface Board HIB-KY-KJ4A

GIS Product
Printhead Manufacturer

Kyocera

Printhead Family

KJ4A-AA

Overview

The GIS HIB-KY-KJ4A-AA Head Interface Board is designed to provide communications between the Kyocera KJ4A-AA 600dpi printhead and the GIS Print Manager Boards (PMB-C2 and PMB-C8-3)

Printhead Variants Supported

KJ4A-AA 600dpi 20kHz

Number of Printheads

1

Print Modes
Binary
Greyscale
Dimensions
Length 80mm
Width 100mm
Depth 14mm
Weight 70g
GIS Product
Monitoring
Printhead Heater
Thermal Protection
Control
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Connectors 2
Cable length from PMB up to 10m
Cable length from HIB to Head 300mm
Download Datasheets

Head Interface Board HIB-KY-KJ4A for KJ4A-AA

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
