Enhanced Drive Electronics for

KM1024i

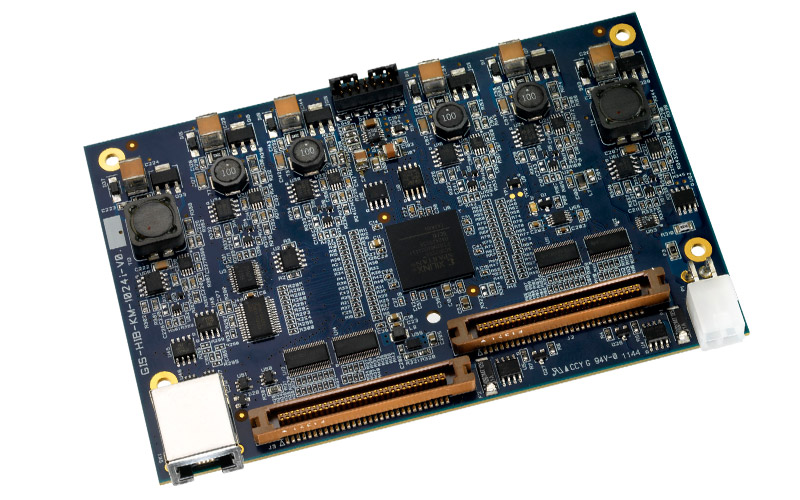

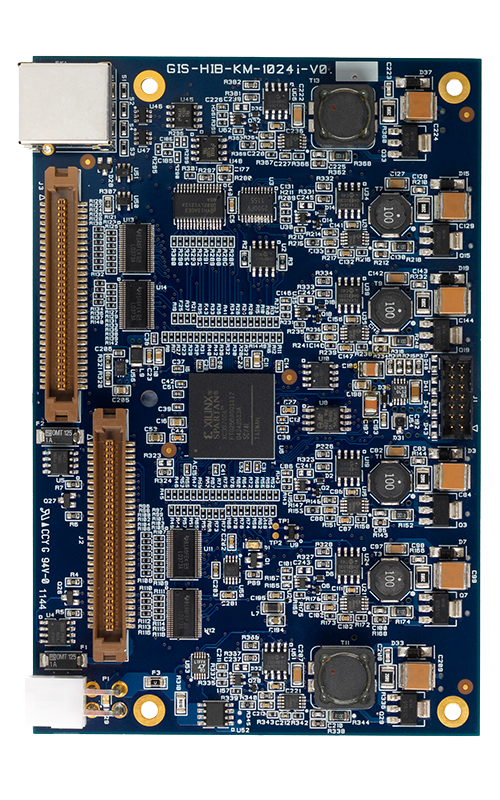

Head Interface Board HIB-KM-1024i

GIS Product
Printhead Manufacturer

Konica Minolta

Printhead Family

KM1024i

Overview

The HIB-KM-1024i from GIS is a Head Interface Board designed to provide direct communications between the Konica Minolta KM1024i series printheads and the GIS Print Manager Boards (PMB-C8 / PMB-C2/ PMB-C8-3).

Printhead Variants Supported

KM1024i

Number of Printheads

2

Print Modes
Binary
Greyscale
Number of Grey levels 8
Dimensions
Length 90mm
Width 137mm
Depth 22mm
Weight 40g
GIS Product
Monitoring
Printhead Heater
Thermal Protection
Control
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Connectors 3
Cable length from PMB up to 10m
Cable length from HIB to Head 550mm
Download Datasheets

Head Interface Board HIB-KM-1024i for KM1024i

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
