Printhead Card E for Ricoh TH6310F
Printhead Manufacturer
Ricoh
Printhead Family
TH6310F
Overview

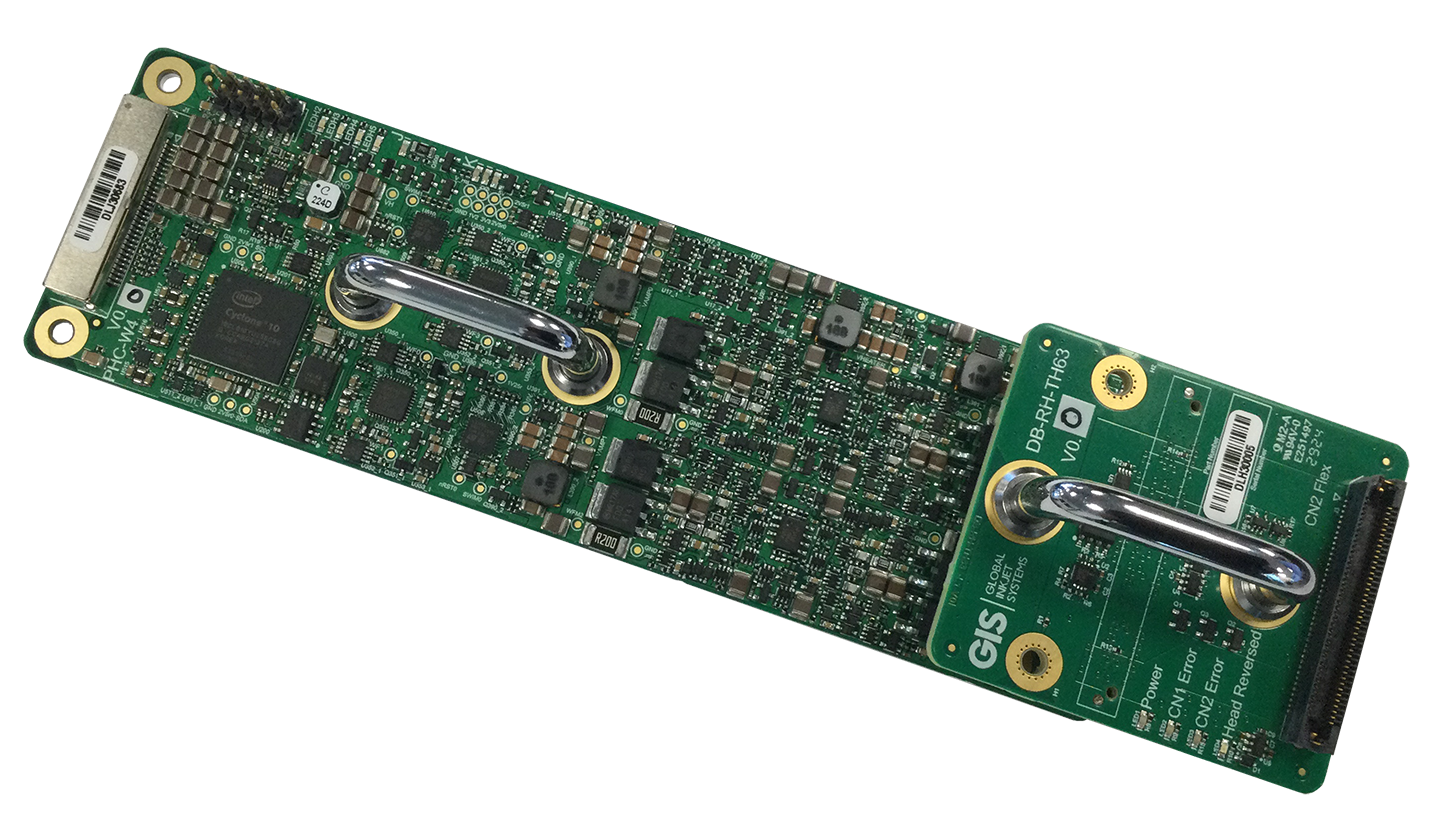

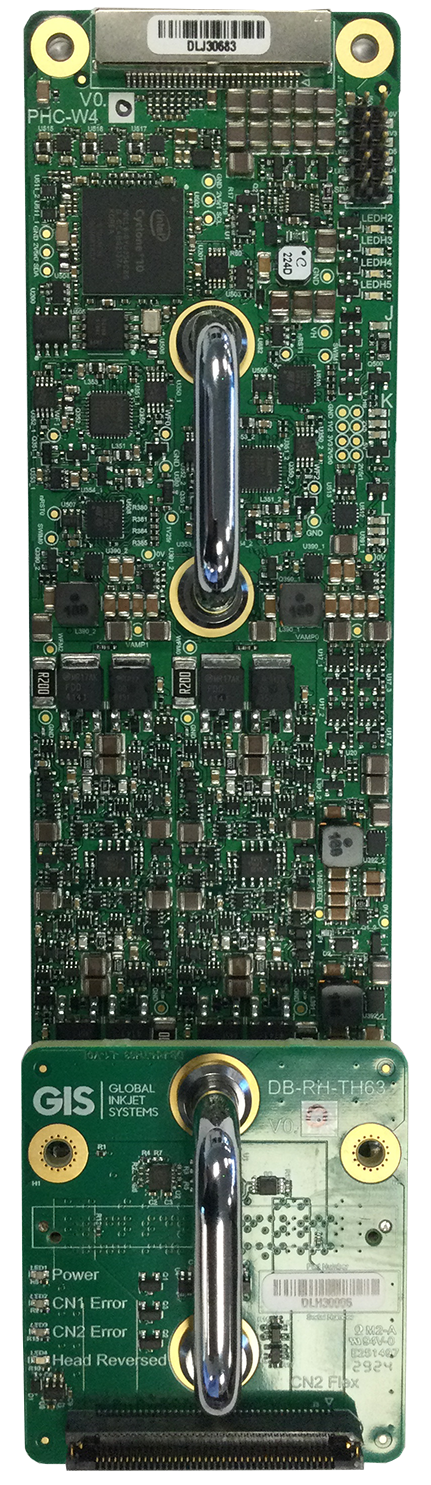

The PHC-W4 and DB-RH-TH63 are designed to support the Ricoh TH6310F printheads, utilising an ethernet platform.
Printhead Variants Supported
TH6310F
Number of Printheads Driven from One Module
1
Number of PHCs driven from one PHCM
6
GIS Product Code & Identifier
1200615 - PHC-W4 and 1200639 - DB-RH-TH63
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 198.4mm |
| Width | 52.2mm |
| Depth | 26.9mm |
| Weight | 125g |
| PC to PHCM Connection Length | up to 100m |
| PHCM to PHC Connection Length | up to 1m |
| PHC to Printhead Connection Length | 400mm |
Control
| Printhead Heater | |
| Thermal Protection |
Monitoring
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Number of Connectors Required to Drive Printhead | 2 |
Advanced Features
- Supports frequencies up to 80kHz
- Printhead heater centralised monitoring and control (±1ºC)
- High quality trapezoidal waveforms
- No print gap between labels
