Printhead Card E for Ricoh Gen5 & Gen6
Printhead Manufacturer
Ricoh
Printhead Family
Gen5, Gen5S & Gen6
Overview

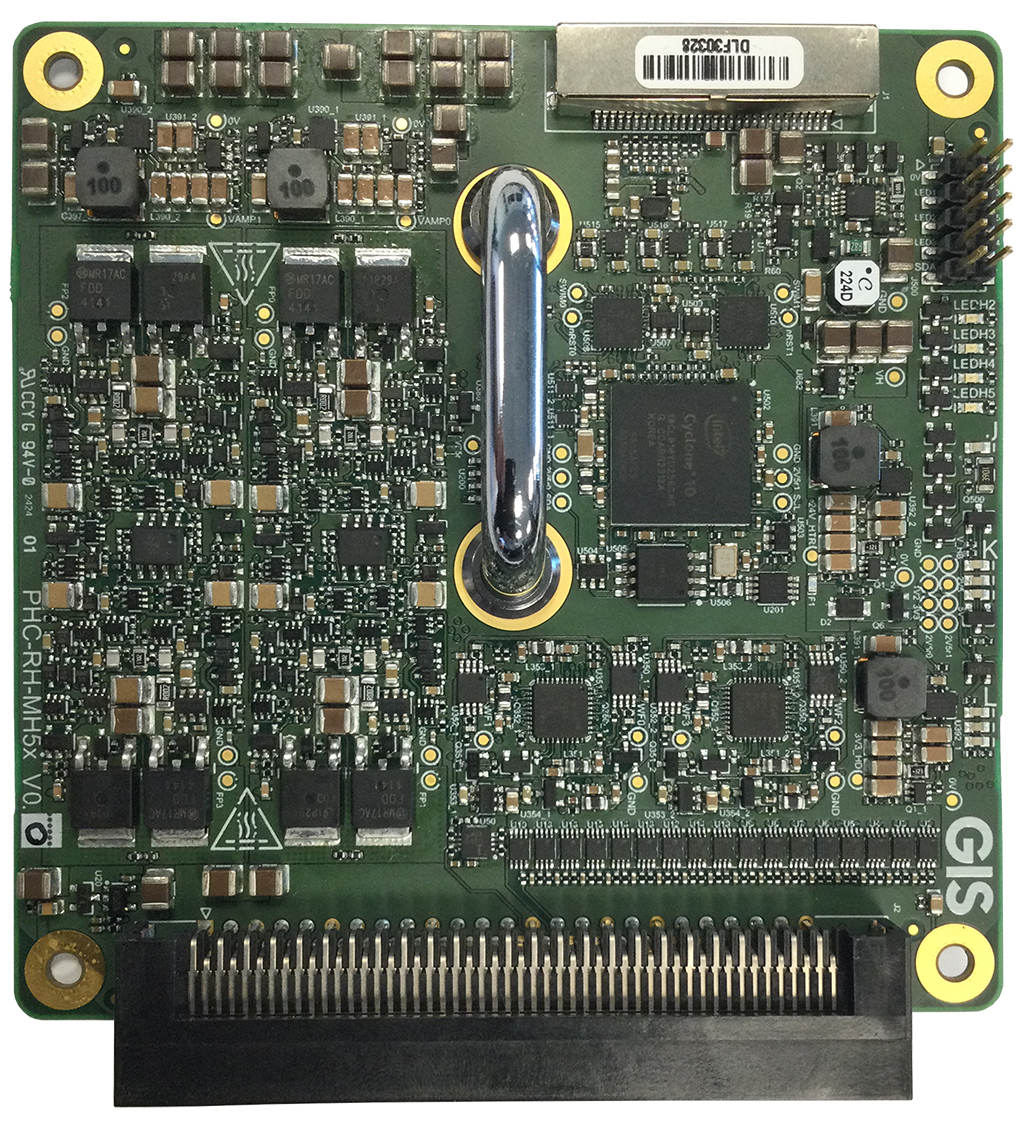

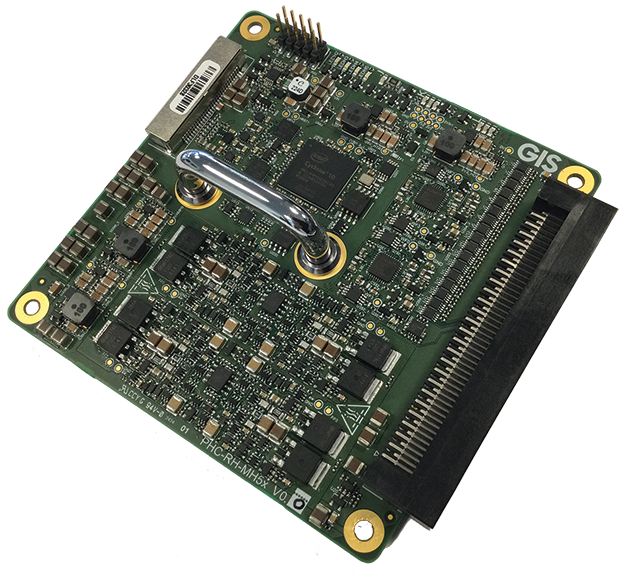

The PHC-RH-MH5x from GIS is a Printhead Card designed to provide communications between the GIS Ethernet Printhead Card Manager and the Ricoh MHxx printhead series.
Printhead Variants Supported
MH5420, MH5421, MH544, MH5421F, MH5421MF, MH5220, MH5320, MH5340, MH5422
Number of Printheads Driven from One Module
1
Number of PHCs driven from one PHCM
6
GIS Product Code & Identifier
1200611 - PHC-RH-MH5x
Print Modes
| Binary | |
| Greyscale |
Dimensions
| Length | 100mm |
| Width | 95mm |
| Depth | 21.8mm |
| Weight | 80g |
| PC to PHCM Connection Length | up to 100m |
| PHCM to PHC Connection Length | up to 1m |
| PHC to Printhead Connection Length | 400mm |
Control
| Printhead Heater | |
| Thermal Protection |
Monitoring
| Board Temperature | |
| Printhead Temperature |
Connectivity
| Power Supply | |
| Number of Connectors Required to Drive Printhead | 2 |
Advanced Features
- Supports frequencies up to 80kHz
- Printhead heater centralised monitoring and control (±1ºC)
- High quality trapezoidal waveforms
- No print gap between labels
