Overview

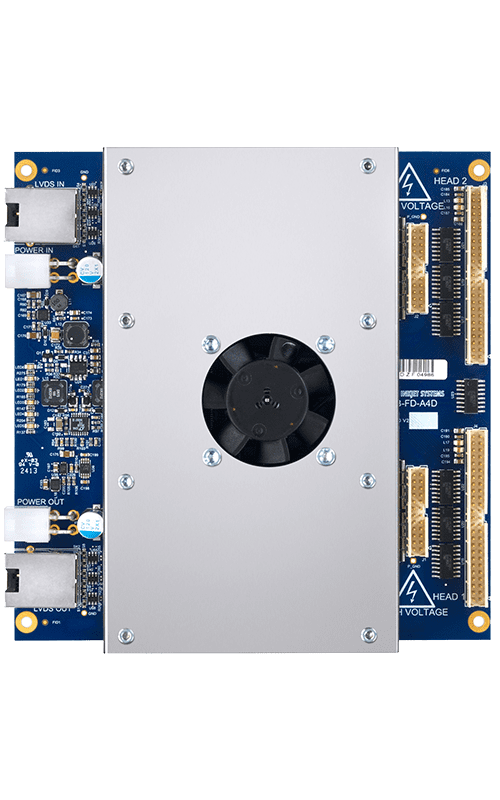

The HIB-FD-A4D from GIS is a Head Interface Board designed to provide communications between the Fujifilm Dimatix StarFire SG1024 (XS/S/M/L) printheads and the GIS Print Manager Boards (PMB-C2, PMB-C8 and PMB-C8-3).

Printhead Variants Supported

StarFire SG1024(XS), StarFire SG1024(S), StarFire SG1024(M), StarFire SG1024(L)

Number of Printheads

2

Print Modes
Binary
Greyscale
Drop Size Mapping
Number of Grey levels 16
Performance

  • Waveform up to 130V amplitude
  • Up to 45V / us slew rate
  • Up to 35kHz frequency
  • 133m/min at 400dpi

Dimensions
Length 144mm
Width 140mm
Depth 37mm
Weight 514g
GIS Product
Monitoring
Printhead Heater
Thermal Protection
Control
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Connectors 3
Cable length from PMB up to 10m
Cable length from HIB to Head 300mm
Advanced Features

The HIB-FD-A4D is able to drive up to 2 x StarFire SG1024 printheads.

Download Datasheets

Head Interface Board HIB-FD-A4D - USB for StarFire SG1024 - USB

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
