Enhanced Drive Electronics for

KM512

Head Personality Board HPB-KM-512

GIS Product
Printhead Manufacturer

Konica Minolta

Printhead Family

KM512

Overview

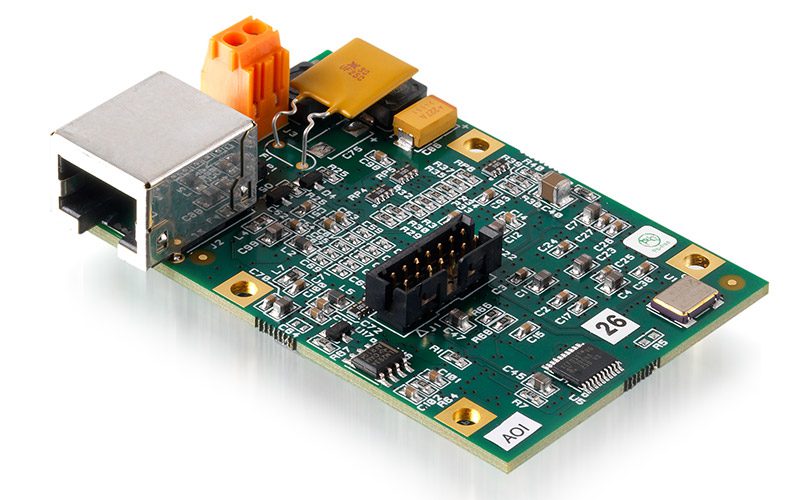

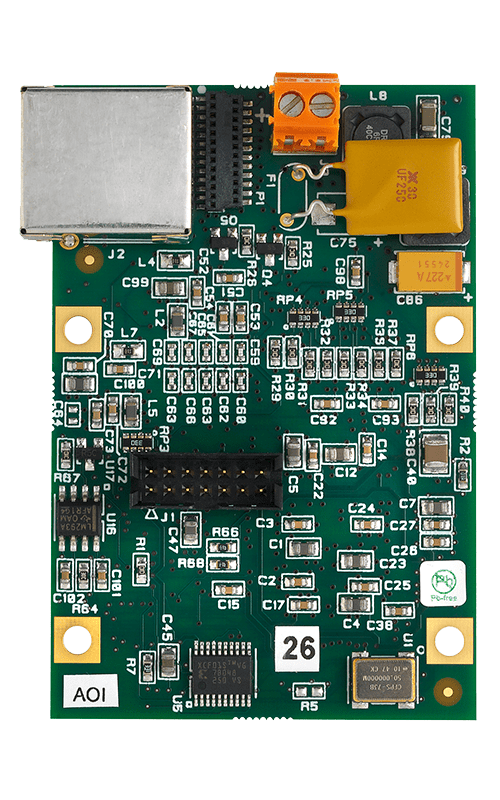

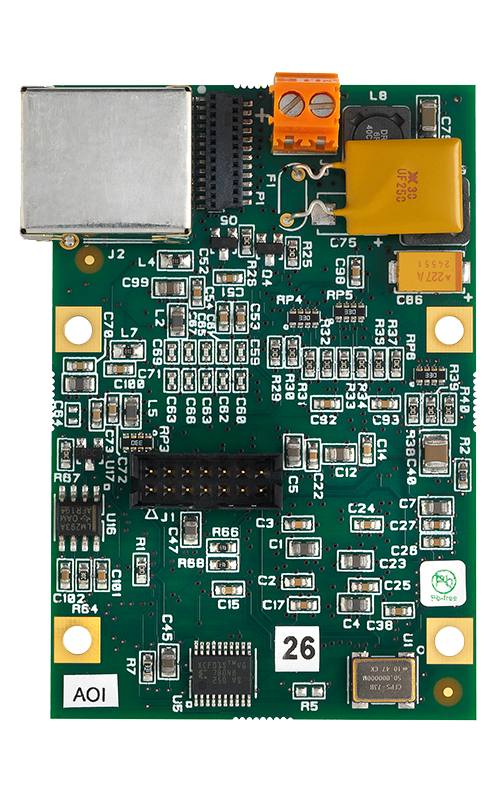

The HPB-KM-512 is a GIS Head Personality Board, designed to provide communications between the Konica Minolta KM512 series (S, M and L) printheads and the GIS Print Manager Boards (PMB-C8 / PMB-C2)

Printhead Variants Supported

KM512 (S,M,L)

Number of Printheads

1

Print Modes
Binary
Greyscale
Dimensions
Length 50mm
Width 71mm
Depth 17mm
Weight 30g
GIS Product
Control
Printhead Heater
Thermal Protection
Monitoring
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 2
Cable length from PMB up to 10m
Cable length from HIB to Printhead* 300mm
Advanced Features

The HPB-KM-512 provides access to all the standard KM512 printhead settings including voltage trim, temperature (where printheads have a heater), binary and greyscale mode, waveform settings. Additional control is also provided over printhead and heater power.

Download Datasheets

Head Personality Board HPB-KM-512 for KM512

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
