Enhanced Drive Electronics for

KM1024

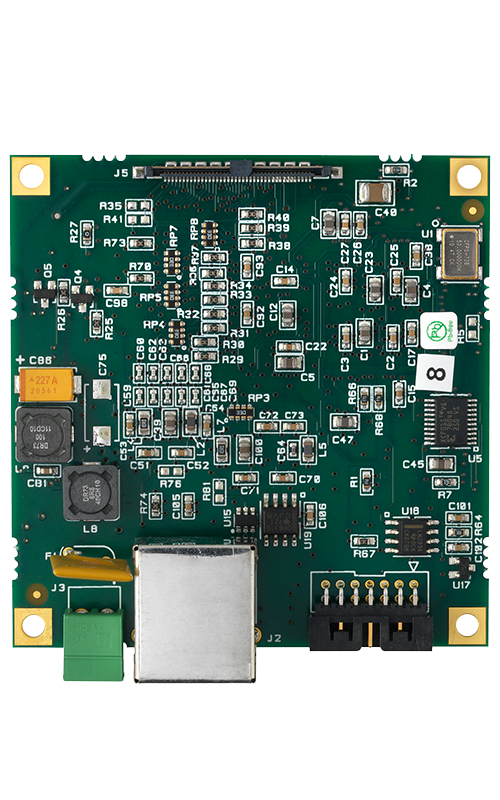

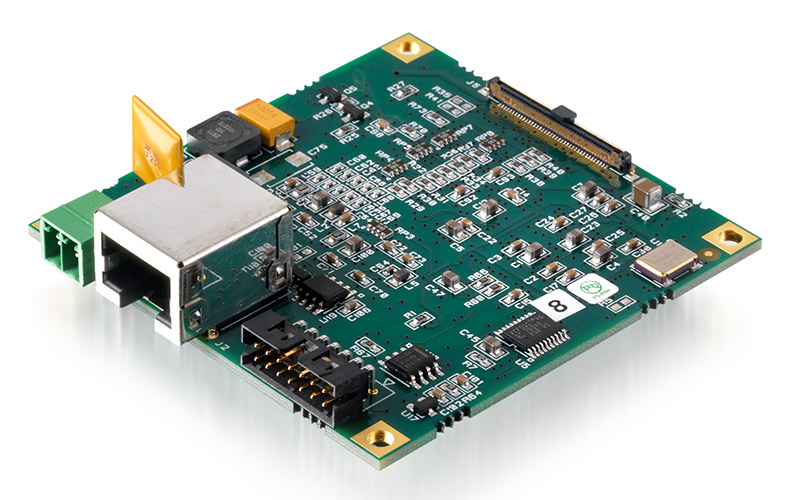

Head Personality Board HPB-KM-1024

GIS Product
Printhead Manufacturer

Konica Minolta

Printhead Family

KM1024

Overview

The HPB-KM-1024 from GIS is a Head Personality Board designed to provide communications between the Konica Minolta KM1024 series (S,M and L) printheads and the GIS Print Manager Boards (PMB-C8/PMB-C2)

Printhead Variants Supported

KM1024 (S,M,L)

Number of Printheads

1

Print Modes
Binary
Greyscale
Dimensions
Length 65mm
Width 67mm
Depth 17mm
Weight 35g
GIS Product
Monitoring
Printhead Heater
Thermal Protection
Control
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Connectors 2
Cable length from PMB up to 10m
Cable length from HIB to Head 300mm
Advanced Features

The HPB-KM-1024 provides access to all the standard KM1024 printhead settings including voltage trim, temperature (for printhead models with a heater), binary and greyscale mode (8 level), and waveform settings. Additional control is also provided over printhead and heater power.

Download Datasheets

Head Personality Board HPB-KM-1024 for KM1024

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
