Head Personality Board HPB-FD-W4D4

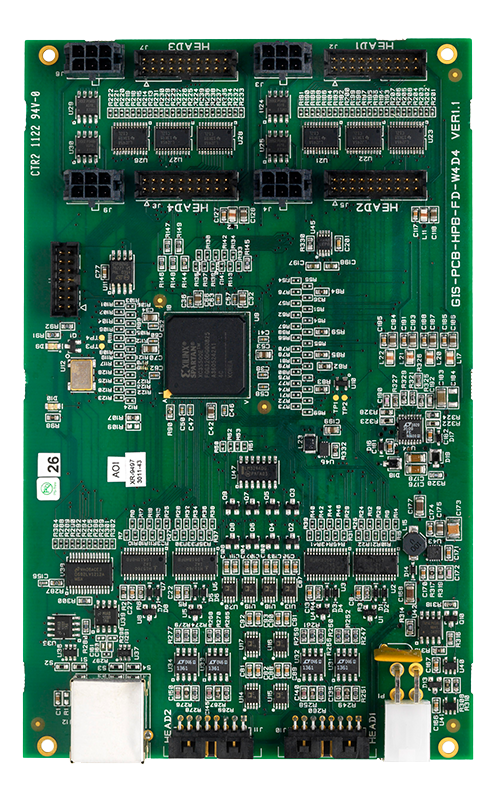

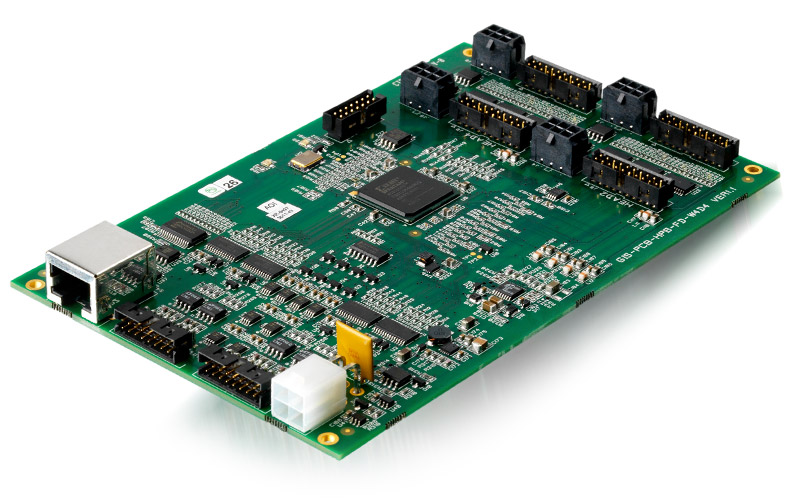

The HPB-FD-W4D4 / HIB-FD-AMP4 from GIS is a Head Interface Board designed to provide communications between the GIS Print Manager Board (PMB-C2) and the Sapphire printhead.
Printhead Variants Supported
QS-256/10 AAA, QS-256/30 AAA, QS-256/80 AAA
Number of Printheads
|Number of Connectors Required to Drive Printhead||3|
|Cable length from PMB||up to 15m|
|Cable length from HIB to Printhead*||300mm|
The HPB-FD-W4D4 / HIB-FD-AMP4 will allow grey-scale, multidrop or binary printing at full-speed. It will generate up to four independent waveforms. Customers will be able to shape each waveform with accurate slew-rate and amplitude control in very fine time-slices throughout each pulse, making it ideal for graphics, ink development, and materials deposition applications. Temperature monitoring is incorporated, as is thermostatic control over heating elements in up to four thermal zones.
Head Personality Board HPB-FD-W4D4 for Sapphire
Click the links below to download pdf datasheets:
