High Performance Drive Electronics for

5601

Head Manager Board HMB-XR-5601

GIS Product
Printhead Manufacturer

Xaar

Printhead

5601

HIB Overview

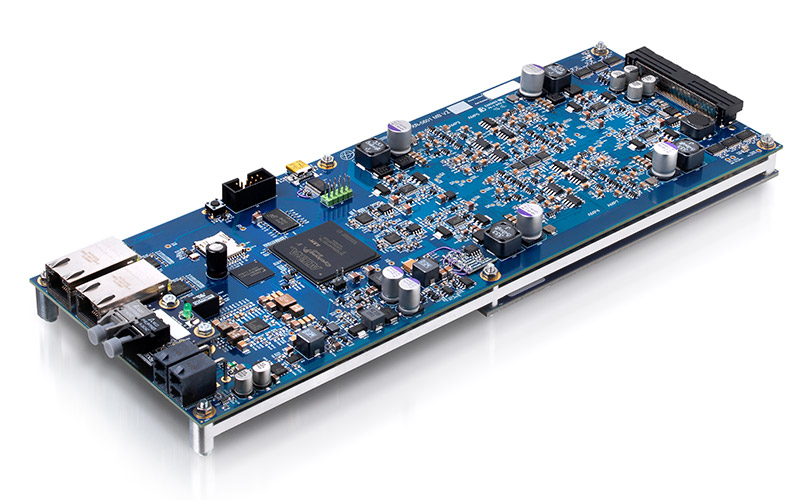

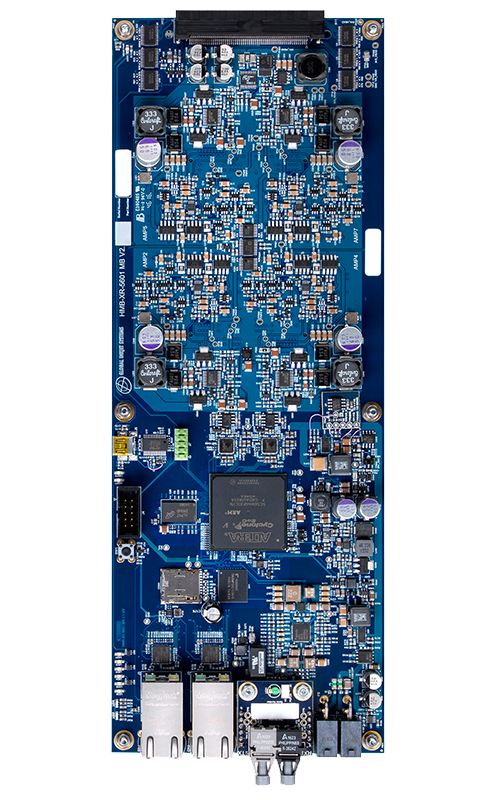

The HMB-XR-5601 from GIS is a new 4th generation datapath Head Manager Board designed to drive the Xaar 5601 3p0 printhead. It enables the user to design images for printing, to configure the print system and control the shape of individual fire pulse signals.

Printhead Variants

5601 3p0

Number of printheads

1

Print Modes
Binary
Greyscale
Drop Size Mapping
Performance

  • Binary and greyscale waveforms
  • Printhead temperature monitoring
  • Printhead EEPROM readback
  • Single and dual colour operation

Dimensions
Height300mm
Width110mm
Depth32mm
Weight515g
GIS Product
Monitoring
Thermal Protection
Connectivity
Power Supply
Connectors3
Cable length from PMBup to 100m
Cable length from HIB to Head360mm
Download Datasheets

Head Manager Board HMB-XR-5601 for 5601

Click the links below to download pdf datasheets:
