Enhanced Drive Electronics for

KM1800iSHC-C

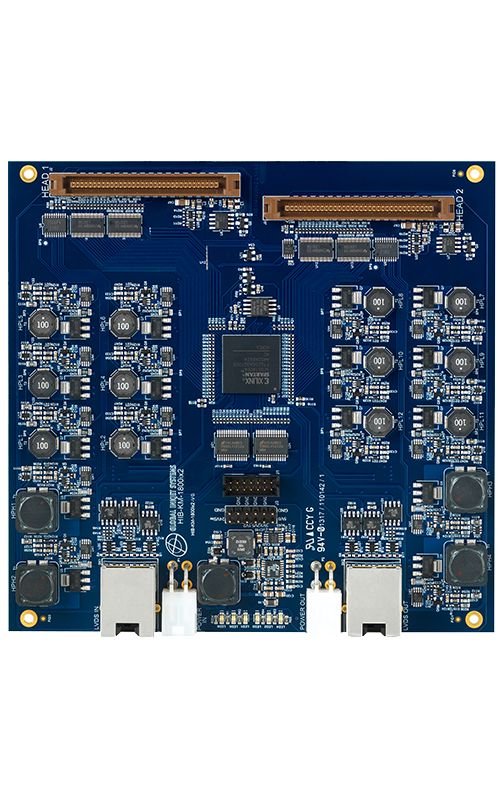

Head Interface Board HIB-KM-1800i

GIS Product
Printhead Manufacturer

Konica Minolta

Printhead Family

KM1800iSHC-C

Overview

The HIB-KM-1800i from GIS is a Head Interface Board designed to provide direct communications between the Konica Minolta KM1800iSHC-C Module (2 x KM1800i printheads) and the GIS Print Manager Boards (PMB-C8-3).

Printhead Variants Supported

2 (1 x KM1800i Module)

Number of Printheads

2

Print Modes
Binary
Greyscale
Performance

The HIB-KM-1800i is specifically designed with a small form factor for compact system architectures. Each board can drive 1 x KM1800iSHC-C Module (2 x KM1800i printheads).

Dimensions
Length 140mm
Width 140mm
Depth 15mm
Weight 185g
GIS Product
Control
Printhead Heater
Thermal Protection
Monitoring
Board Temperature
Printhead Temperature
Connectivity
Power Supply
Number of Connectors Required to Drive Printhead 4
Cable length from PMB up to 10m
Cable length from HIB to Printhead* 300mm
Advanced Features
  • Printhead and Heater Voltage Control
  • Left and Right Nozzle Bank Voltage Trim (0.1V steps)
  • Printhead Thermistor Control (0.1ºC steps)
  • Grey Level / Binary Mode Control
  • Grey Level Drop Count Control
  • Printhead Waveform Control
Download Datasheets

Head Interface Board HIB-KM-1800i for KM1800iSHC-C

Click the links below to download pdf datasheets:

For more information, contact us here or call us on +44 (0) 1223 733 733
